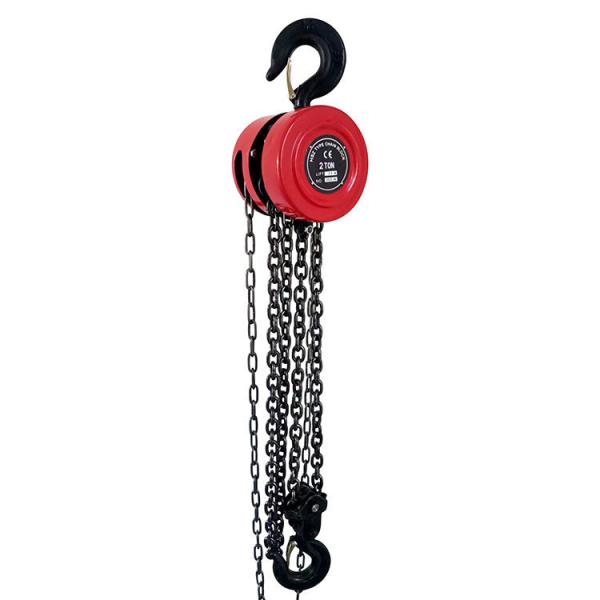

Manual Chain Hoist Lifting Equipment 0.5 Ton Hand Chain Hoist
Description:

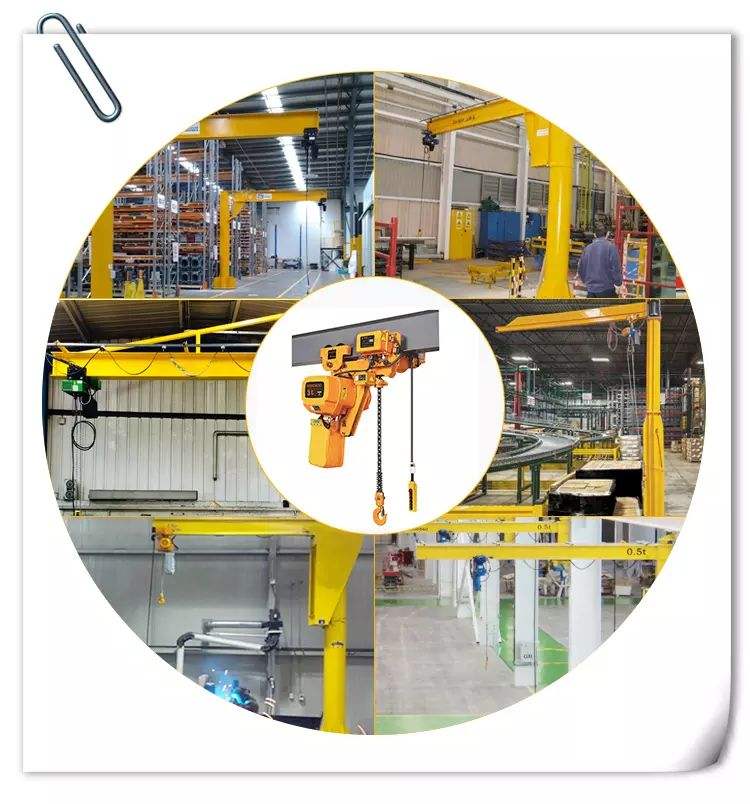

Chain hoist is specially advantageous for lifting work in the open
air and places where no power supply is available.The chain block
can be attached to a trolley of any type as a traveling chain
hoist.It is suitable to monorail overhead conveying system,hand
travelling crane and jib crane.
The upper and lower hooks of the chain hoist are made of alloy
steel, which can be bent without breaking directly after
overloading, which is thick and durable.
Standard Features:
- Chain hoist Capacity range from 0.5 ton to 50 ton
- Compact sized design product suitable for all application.
- Suspension and load hooks are made of alloy steel, and fitted with
heavy duty safety latches, fitting groove and inspection points.
- Machined chain sprocket and gears provide smoother,more efficient
operation.
- Hook with safety latch securely can rotate freely 360 degrees.
- Ergonomic handle design so that the hoist is easy to operate.
- Hoist has overload protection system.
- Fitted with High strength grade alloy steel load chain with
galvanized finish for corrosion resistance.
- Heavy duty guide rollers for avoiding slippage of load chain.
- Rugged construction featuring steel gear case and hand wheel cover
for hand chain operation.
Specifications:
| Model | DZ121 | DZ251 | DZ161 | DZ321 | DZ252 | DZ501 | DZ1001 | DZ2001 |
| Rated Capacity(ton) | 0.125 | 0.25 | 0.16 | 0.32 | 0.25 | 0.5 | 1 | 2 |
| Testing Load(ton) | 0.16 | 0.32 | 0.2 | 40 | 0.32 | 0.63 | 1.25 | 2.5 |
| Standard Lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Lift Speed Fast(m/min) | 8 | 4 | 12 | 6 | 8 | 4 | 8 | 4 |
| Lift Speed Slow(m/min) | 2 | 1 | 3 | 1.5 | 2 | 1 | 2 | 1 |
| Number of Falls | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
| Output Power Fast | 0.25 | 0.4 | 0.4 | 1.6 |
| Output Power Slow | 0.06 | 0.1 | 0.1 | 0.4 |
| Rating Factor Fast | 20 | 20 | 20 | 20 |
| Rating Factor Slow | 40 | 40 | 40 | 40 |
| Net Weight(kg) | 25 | 25 | 27 | 30 | 31 | 33 | 55 | 58 |
Propuct:
Electric chain hoist is the light hoisting equipment, and of
advanced technology, its main body is composed by high-strength
alloy metal, therefore it's of small volume, light weight, compact
structure, easy operation, handsome modeling, etc.
